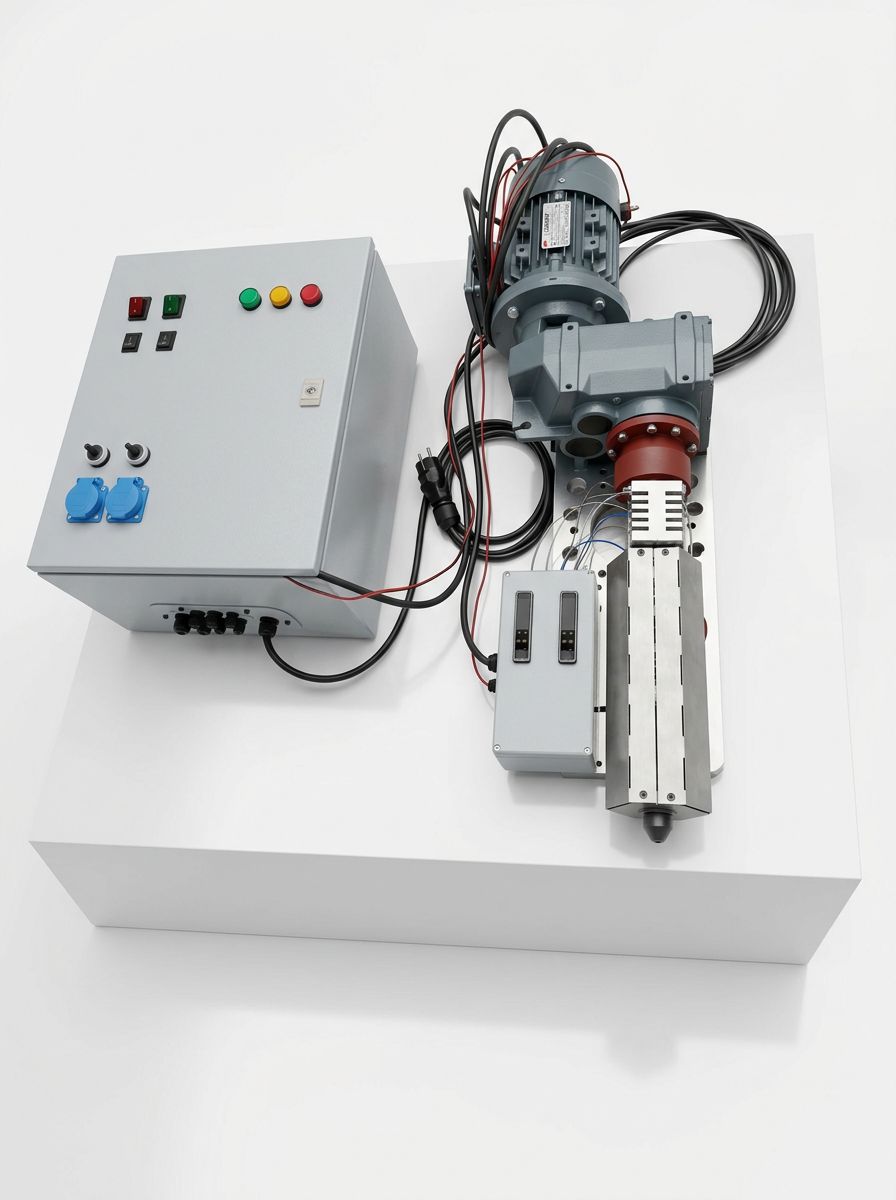

Lydia SJ25 — Pellet Extrusion Printhead for Robotic and Large-Format 3D Printing
Modular pellet-fed extrusion head designed for clean melt flow, broad material compatibility, and fast integration with robotic arms and CNC gantries.
Features
- Compact printhead for precise, uniform deposition
- Interchangeable nozzles and heating zones with adaptive temperature and pressure control

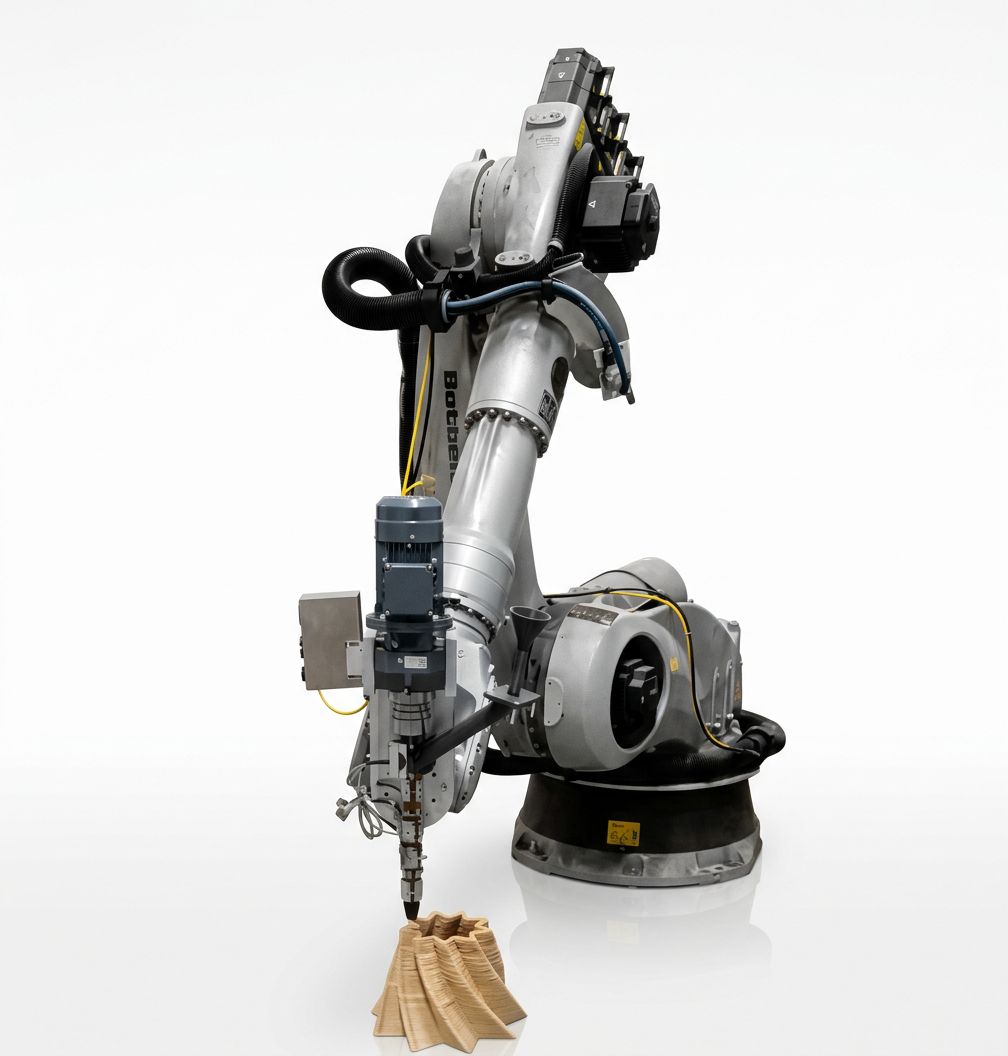

- Integrates with 6-axis robots and CNC/PLC control systems
- Processes pellets, raw material, and recycled flake reliably
- Web-based monitoring with visual and audible feedback
- Robust, low-maintenance design built for industrial use
- Ideal for large-format prototypes, tooling, and end-use parts
Contact us for detailed specifications, package sizing, and integration kits.
| Spec | Value |
|---|---|
| Model | Lydia SJ25 – Robot Printhead |
| Version | 3.5 |
| Screw ø | 25 mm |
| Barrel ø | 40 mm |
| Barrel length | 42 cm |
| Motor power | 1.5 kW |
| Gearbox ratio | 1 : 30 |
| Speed | 50 RPM @ 50 Hz |
| Voltage | 220 V |
| Input flake size | Small – Medium |
| Weight | 35 kg |
| Package dimensions | 80 × 80 × 300 cm |
