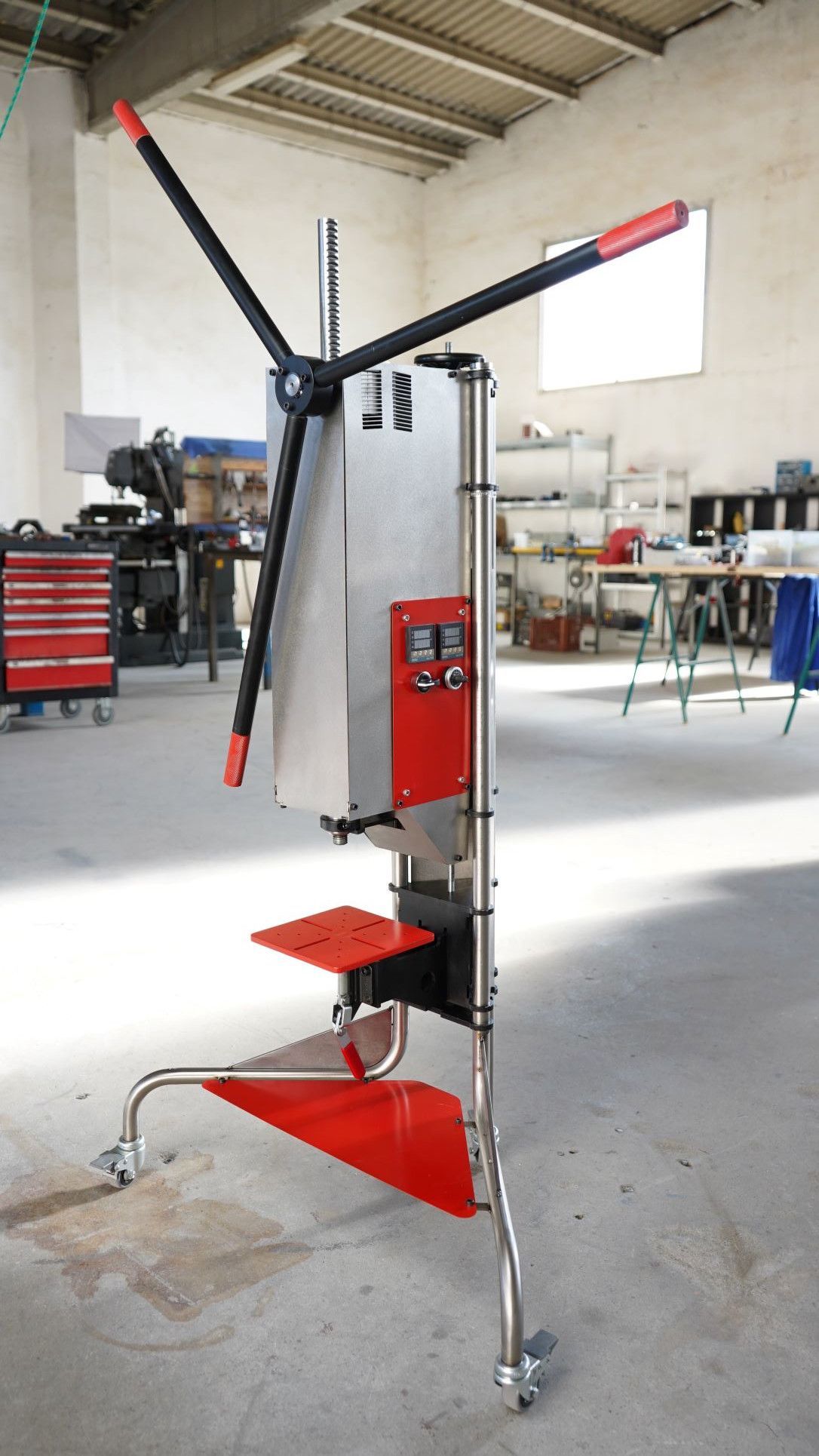

Lightweight arbor injection machine — fast, repeatable, and precise injection of recycled plastic. Optimised for educational settings, makerspaces, and small-batch production.
Features
- Precision CNC-manufactured — all critical parts machined on modern CNC and manual machines
- Smooth plunging with replaceable bronze-tipped plunger
- 2 mould interfaces — cone nozzle for press + M20 thread interface

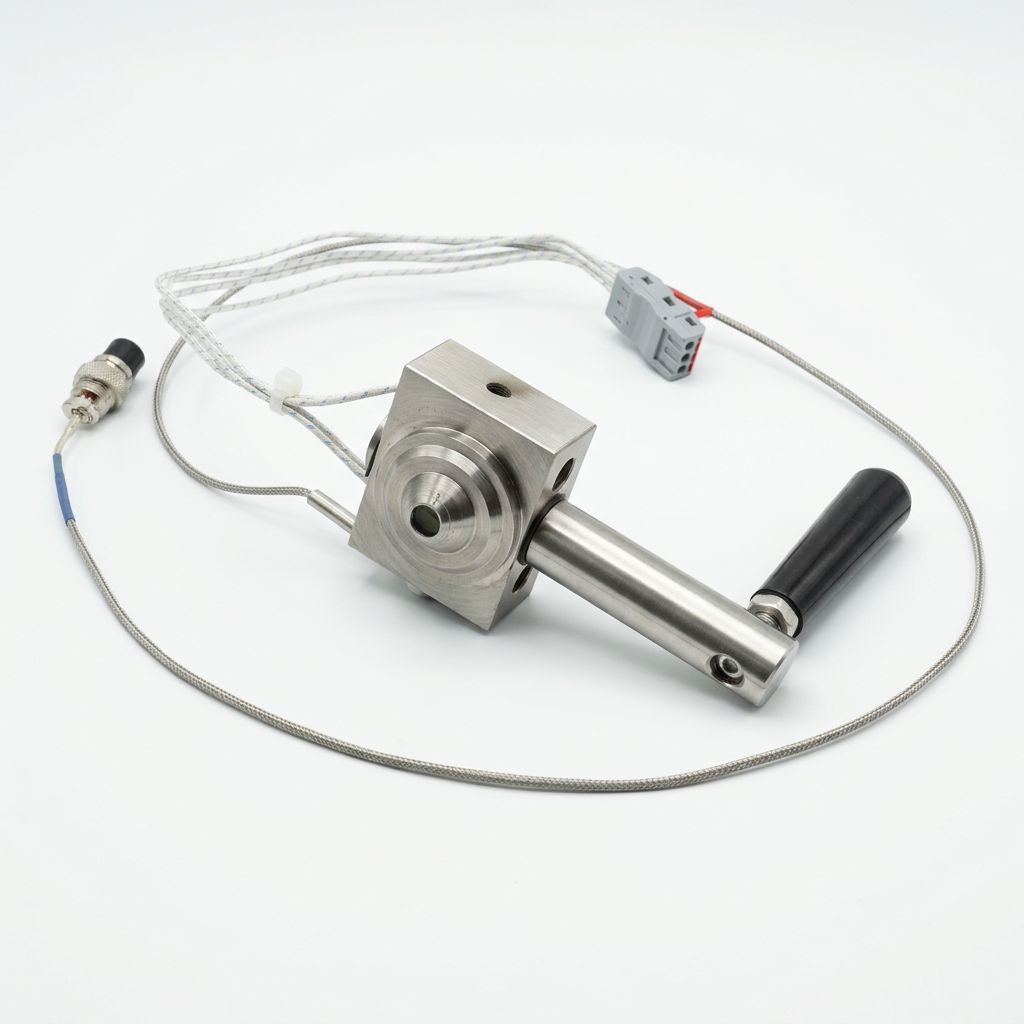

- Heated shutoff valve — stops plastic flow so moulds can be pre-heated before injection
- Stepless mould height adjustment with guide pins and slots
- Heat shield and barrel insulation for stable temperatures (±1 °C tolerance)
- Hardened barrel, mostly stainless steel and aluminium construction
- Quick mould pressure mechanism
- Shot size: 150–220 g
Services
- After-sales support
- 3-year warranty
- Affordable replacement consumables
- Custom modifications to user requirements
- Mould design and fabrication
| Spec | Value |
|---|---|
| Model | Myriad – Standard |
| Shot size | Up to 300 g |
| Plunger ø | 25–30 mm |
| Usable barrel length | Up to 45 cm |
| Transmission | 1 : 1.5 |
| Mould interface | M20 thread / cone nozzle |
| Heat bands | 4 × 250 W (ceramic) |
| Temperature controller | 2 × Inkbird |
| Input flake size | Small – Medium |
| Voltage | 220 V / 110 V |
| Weight | 35 kg |
| Package dimensions | 130 × 30 × 55 cm |
