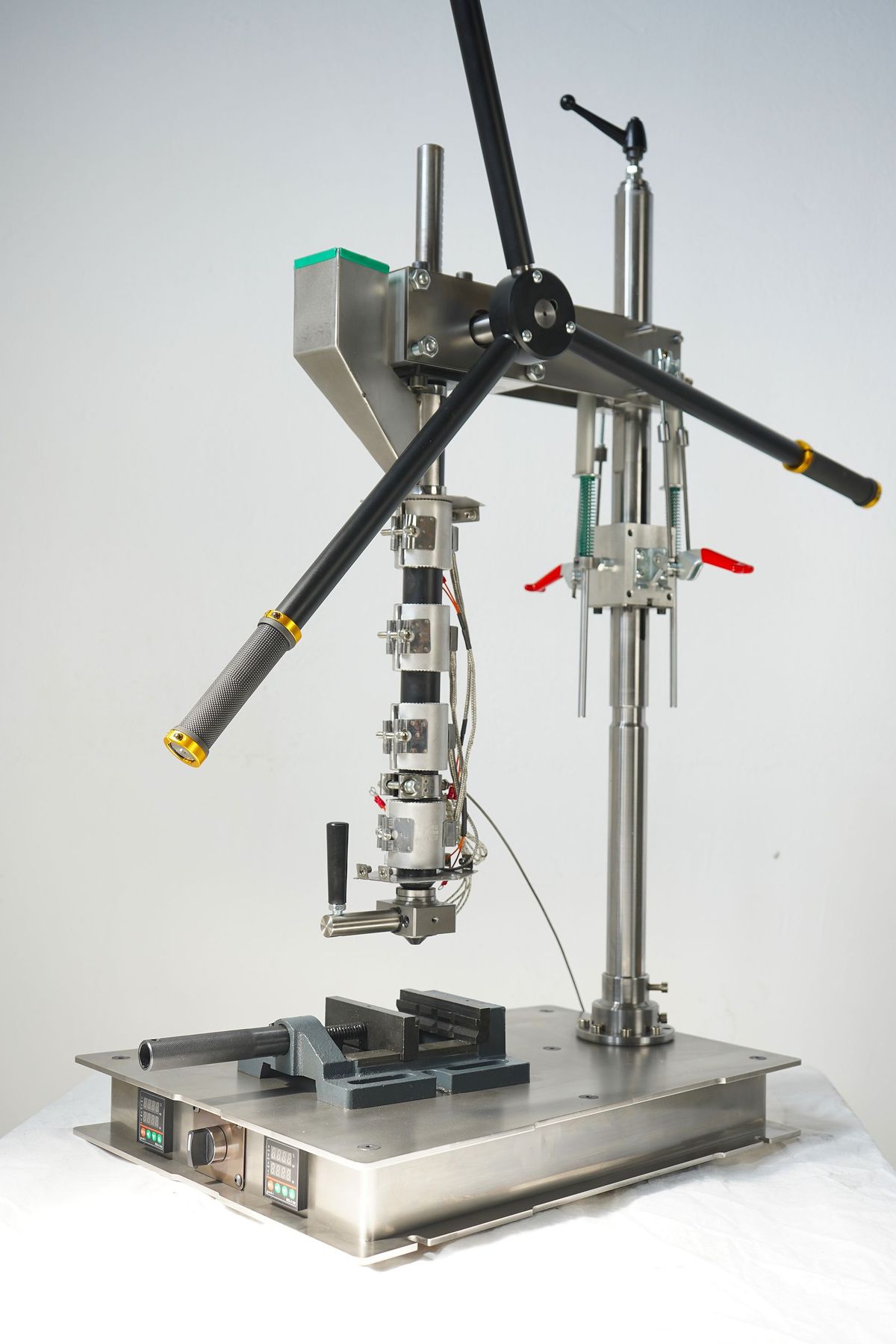

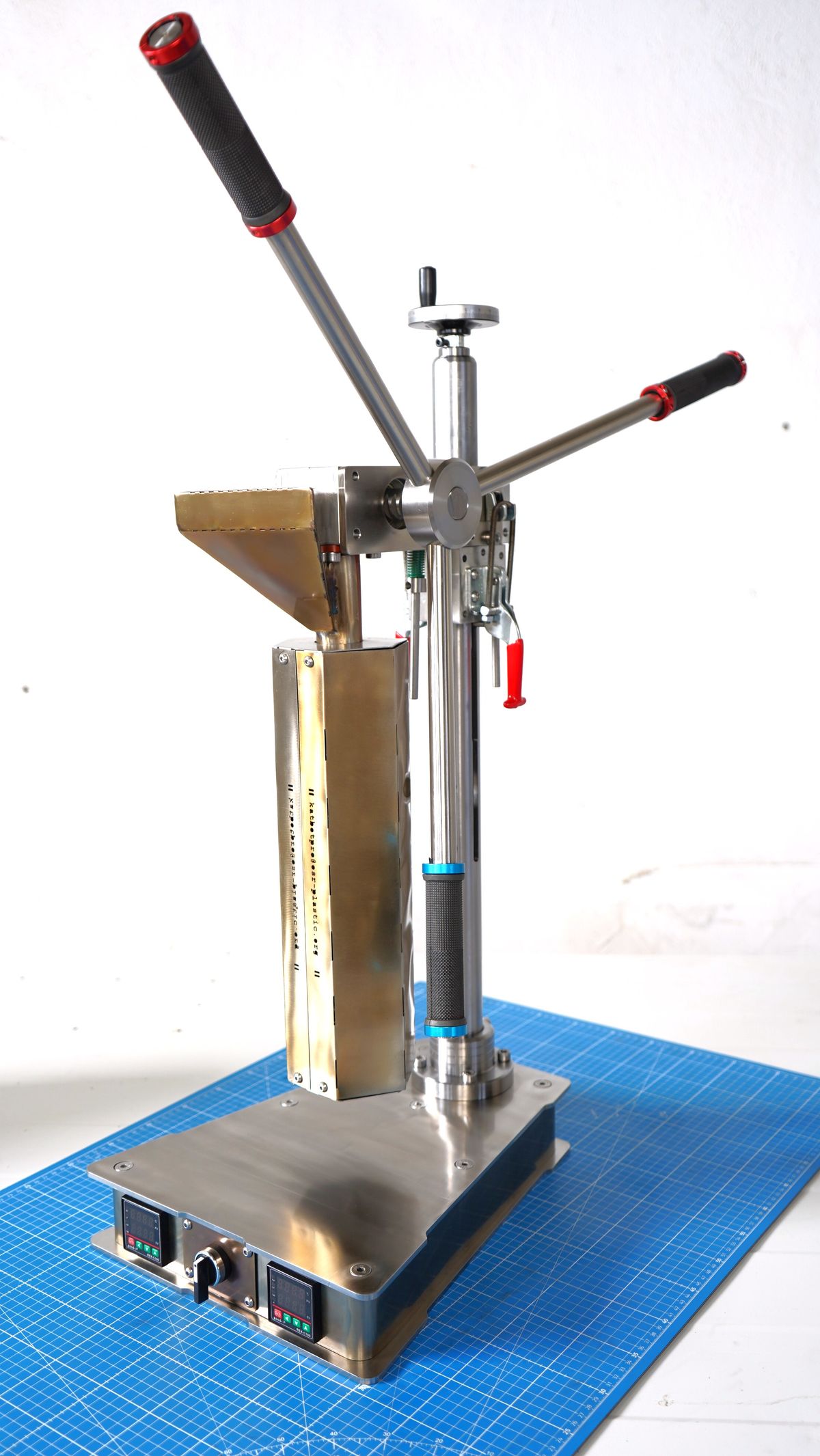

Compact arbor injection machine — fast, repeatable, and precise injection of recycled plastic. The Katbot delivers reliable 145 g shots in a lightweight, easy-to-move package.
Features
- Precision CNC-manufactured — all critical parts machined on modern CNC and manual machines
- Smooth plunging with replaceable bronze-tipped plunger
- 2 mould interfaces — cone nozzle for press + M20 thread interface
- Heat shield and insulation
- Stepless mould height adjustment with guide pins and slots
- Shutoff valve for clean, drip-free injection
- Quick clamping mechanism
- Mostly stainless steel and aluminium construction
- Shot size: 145 g
Services
- After-sales support
- 3-year warranty
- Affordable replacement consumables
- Custom modifications to user requirements
- Mould design and fabrication
| Spec | Value |
|---|---|
| Model | Katbot – Vintage Deluxe |
| Shot size | 145 g |
| Plunger ø | 25 mm |
| Usable barrel length | Up to 45 cm |
| Transmission | 1 : 1 |
| Mould interface | M20 thread / cone nozzle |
| Heat bands | 3 × 250 W (ceramic) |
| Temperature controller | 2 × RexC-100 |
| Input flake size | Small – Medium |
| Voltage | 220 V / 110 V |
| Weight | 27 kg |
| Package dimensions | 70 × 45 × 45 cm |
| Key features | Shutoff valve, adjustable mould height, quick clamping |
