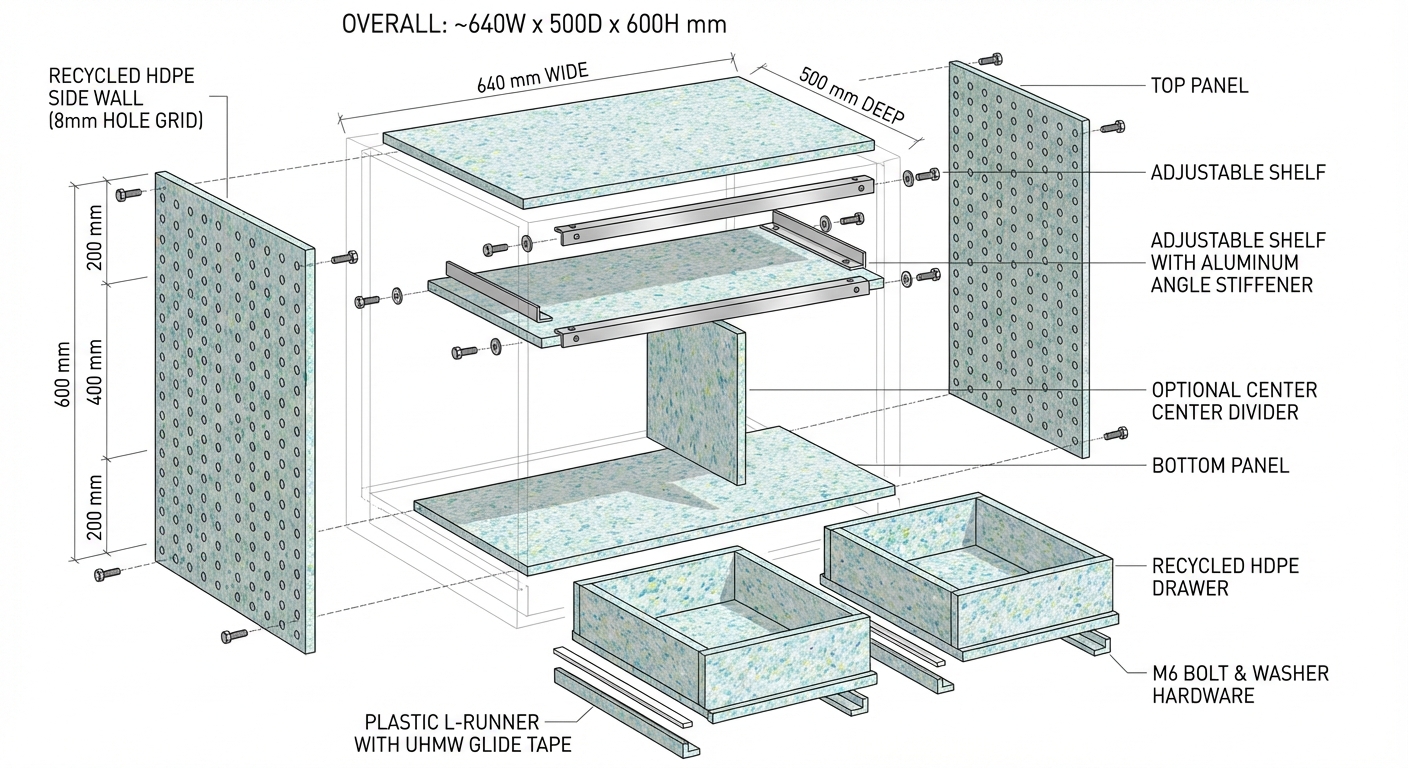

Exploded overview: 600 mm cell module with reversible joinery and bolt-on stiffeners.

Modular, heavy‑duty shelving and drawer system from recycled plastic sheets (2×1 m, up to 20 mm)

Summary

• Goal: Build a reconfigurable, heavy‑duty shelf/drawer system using recycled plastic sheet stock. All joints are mechanical (no glue) so walls and floors remain reusable.
• Sheet size: 2000 × 1000 mm, thickness up to 20 mm (recommend 15–20 mm for structural parts).
• Cell widths: 200, 400, 600 mm internal clear widths. Depth: standardized at 500 mm external to maximize 2 m sheet yield. Heights in 200 mm increments.
• Tools: Table saw, CNC router, drill press, lathe (for spacers/bushings/rollers), plus hand tools.

Why recycled plastic?

• Impact/abrasion resistant, easy to clean, moisture‑proof.
• Works well with reversible fasteners (bolts, cross‑dowels, inserts) and dovetail/slot geometry cut on CNC.
• Note: HDPE/PP creep under sustained loads; design for stiffness first, and use short spans or stiffeners for heavy parts.

Core design concept

• Carcass: Side walls with a front and rear stretcher and optional back rails. Internal shelves and/or drawers mounted to an indexed hole grid or dovetail slots. No adhesives; everything bolts or slides together.
• Module grid: Internal clear widths of 200/400/600 mm; standard external depth 500 mm; height in 200 mm increments.
• Reuse: Universal hole/slot patterns and bolt‑through joints allow disassembly, resizing, or repurposing panels.

Standard module dimensions (20 mm sheet)

• Internal widths: 200, 400, 600 mm
• External widths: 240, 440, 640 mm (adds 2 × 20 mm side walls)
• External depth: 500 mm (shelf top/bottom 500 deep). Internal clear depth typically ~460 mm if you add a 20 mm rear rail and 20 mm front face; otherwise ~480 mm open.
• Height: stack in 200 mm internal modules (e.g., 400, 600, 800 mm external, etc.)

Load and stiffness guidance (20 mm HDPE/PP, 500 mm shelf depth)

• Governing limit is deflection and long‑term creep rather than ultimate strength.
• Keep unsupported shelf spans ≤ 400 mm for heavy items if using flat 20 mm shelves.
• Strategies for 600 mm internal width:
  • Add a removable center divider (splits span to 2 × 300 mm).
  • Bolt on under‑shelf stiffeners (aluminum angle 30×30×3 mm along front and back edges) or a removable center beam (e.g., 40×20×2 mm aluminum tube).
  • Use a bolt‑together torsion‑box shelf (see below) if you need long spans with small deflection.
• Approximate uniform load to 3–5 mm mid‑span deflection with a flat 20 mm shelf (conservative):
  • 200 mm span: effectively governed by creep and fasteners; deflection is very small — practical loads > 100 kg are possible with proper supports.
  • 400 mm span: target ≤ 80–100 kg long‑term when supported along side walls; use front/back angle stiffeners for better rigidity.
  • 600 mm span: limit ≤ 30–50 kg unless you add stiffeners or a center divider. With a center divider or twin angles front/back, 80–120 kg is reasonable.
• Always spread loads, use washers, and avoid point loads.

Joinery (reversible)

• Primary joints: CNC tab‑and‑slot plus bolt‑through with M6/M8 machine screws, penny washers, and nyloc nuts or cross‑dowels.
• Adjustable shelves:
  • Option A: 8 mm peg/bolt hole grid at 50 mm pitch; shelves sit on bolt‑on cleats or shelf pins.
  • Option B: CNC dovetail pockets in side walls; shelves have mating dovetail tongues that slide in/out (very rigid and tool‑less). Keep draft 7–10°; add 1–2 mm clearance for plastics.
• Drawers: Use bolt‑on runners from plastic L‑profiles with UHMW tape, or off‑the‑shelf metal slides (still reversible). Lathe scrap can be used to turn nylon/HDPE rollers.
• Thermal expansion: Plastics move ~0.12–0.20 mm per meter per °C. Use elongated holes along width on stretchers and back rails, and don’t over‑constrain; always use large washers.

Panel reuse strategies

• Mirror‑symmetric hole patterns and consistent datum edges.
• Fasteners only in holes/slots; no adhesives or solvent welding.
• Use replaceable wear strips/tapes for sliding surfaces.
• Label parts with engraved IDs near edges (3 mm text) to keep surfaces reusable.

Material and hardware

• Plastic: Recycled HDPE or PP sheets, 15–20 mm for structural panels; 10–15 mm acceptable for nonstructural dividers/drawer fronts if available.
• Fasteners: M6 stainless or zinc‑plated bolts, washers, nyloc nuts; optional M6 cross‑dowels. Consider heat‑set inserts only in non‑critical features.
• Stiffeners (optional): Aluminum angle 30×30×3 mm or 40×40×3 mm; aluminum rectangular tube 40×20×2 mm as a center beam.
• Low‑friction: UHMW tape on runners; PTFE washers at pivots.

Standard hole/slot pattern

• Upright walls: 8 mm holes at 50 mm vertical pitch, two rows 30 mm from front/back edges. Start first hole 40 mm above base to clear bottom rail.
• Cross rails: 10×20 mm slots at ends for M6 bolts to allow expansion.
• Dovetail option: 12 mm deep pockets, 10° dovetail; shelf tongues 10–11 mm tall with 0.5–1.0 mm side clearance.

Cut planning from a 2×1 m, 20 mm sheet (examples)

• Target external depth 500 mm to cleanly rip the 2000 mm length into 4 equal panels (4 × 500 = 2000).
• Example yields:
  1. One 600‑mm module (Wext 640 × D 500 × Hext 600) with two shelves:
     • From 1000 mm width: rip 640 + 240, leaving 120 mm trim/cleats
     • From 2000 mm length: cut 4 × 500 mm segments (tops/bottoms/shelves)
     • Parts: 2 sides 600 × 500; 1 top 640 × 500; 1 bottom 640 × 500; 2 shelves 600 × 480; rails/cleats from offcuts.
  2. Two 400‑mm modules (each Wext 440 × D 500 × Hext 600):
     • From 1000 mm width: 2 × 440 (plus 120 mm cleats)
     • From 2000 mm length: 4 × 500 segments
     • Parts per module: 2 sides 600 × 500; 1 top 440 × 500; 1 bottom 440 × 500; 2 shelves 400 × 480; rails from offcuts.
  3. Triple‑stack 200‑mm cells: Use the offcuts (120 mm wide strips) laminated as cleats/stiffeners or split into runners.

Shelf options (reusable)

• Flat shelf: Single 20 mm sheet, edges eased. For 600 mm width use front/back aluminum angles (bolt‑on) or a removable center divider.
• Torsion‑box shelf (bolt‑together):
  • Two skins (e.g., 2 × 10–15 mm) with 40–50 mm deep internal ribs at ~200 mm spacing; bolt through a grid of M6 countersunk screws into cross‑dowels or nylocs. Massive stiffness increase; fully demountable.

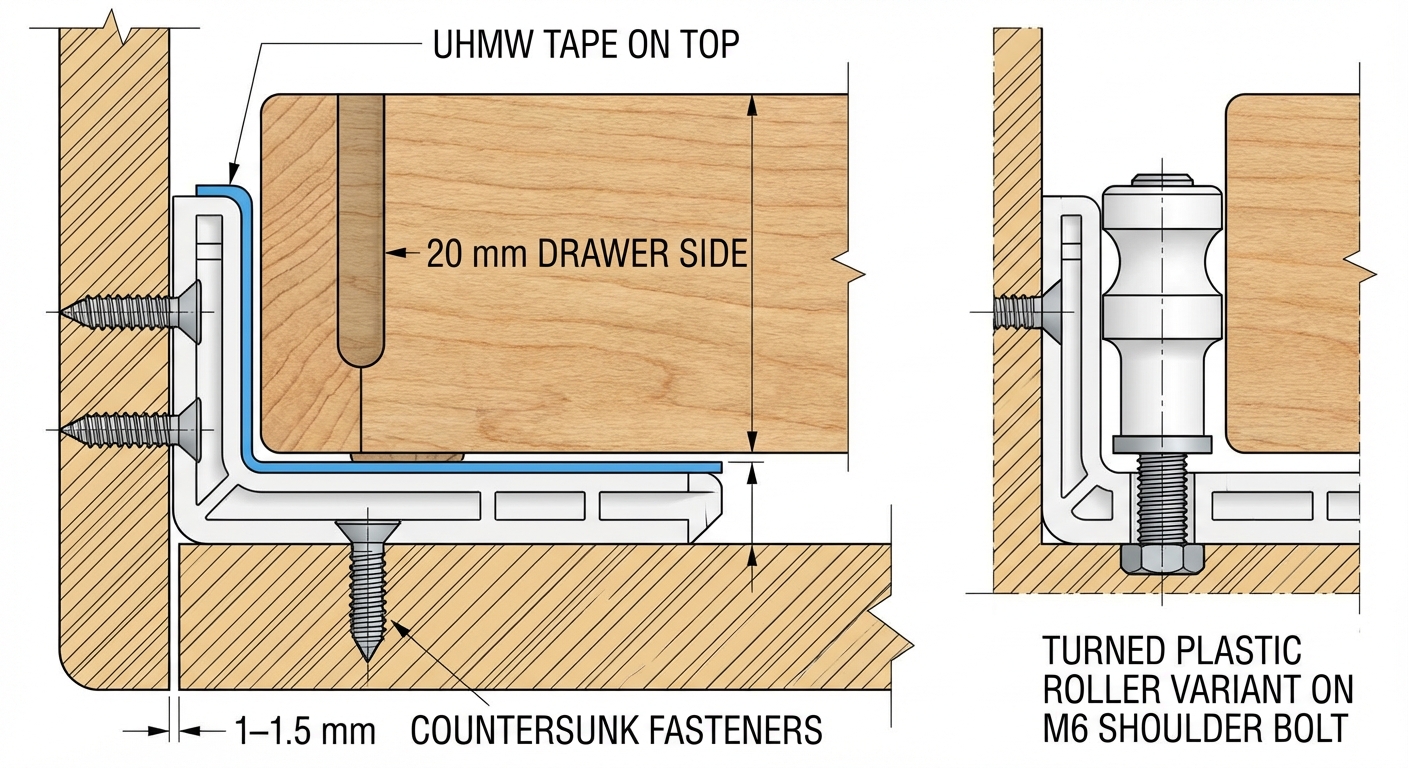

Reconfigurable drawer runners: tape-on glide or lathe-turned rollers.

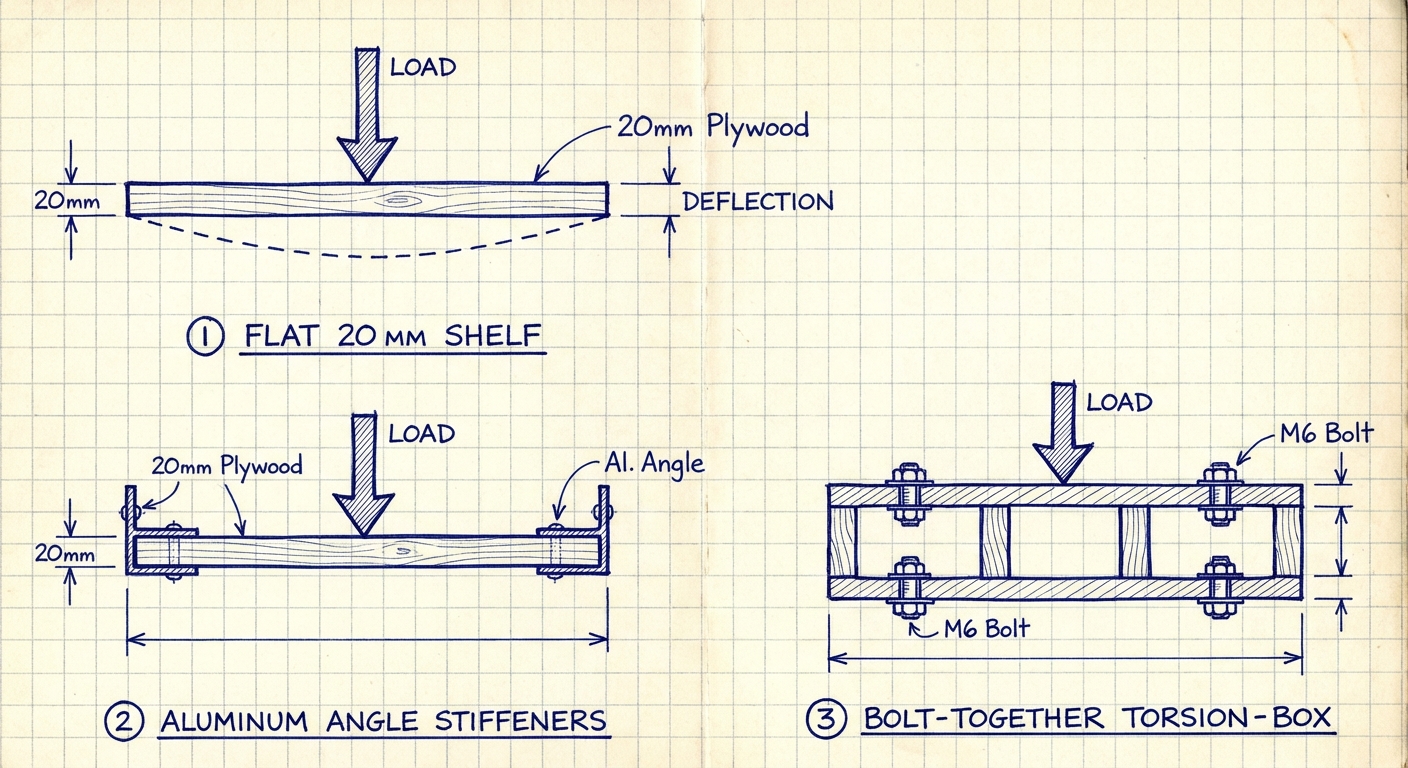

Stiffness strategies to keep deflection and creep under control.

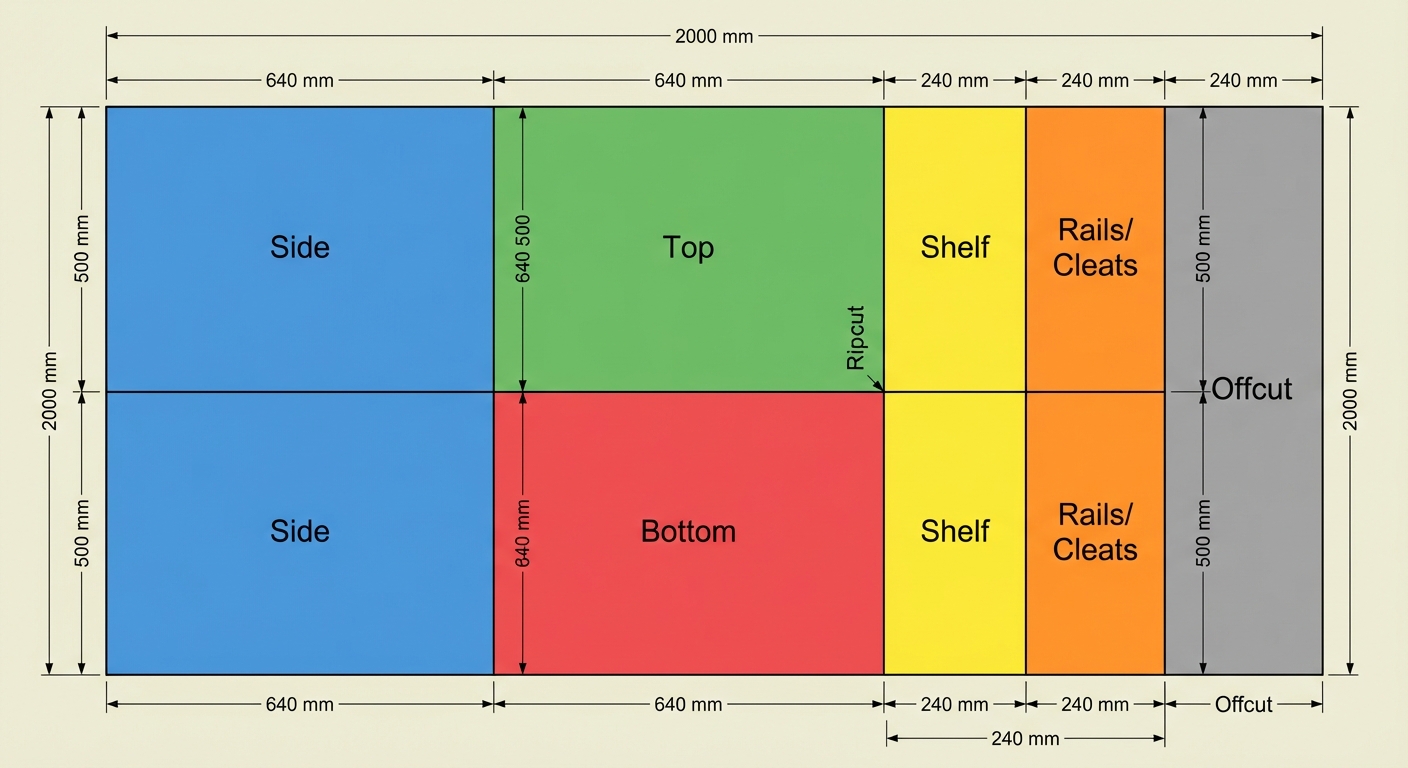

Optimized cut plan: 500 mm depth modules yield cleanly from a 2 m sheet.

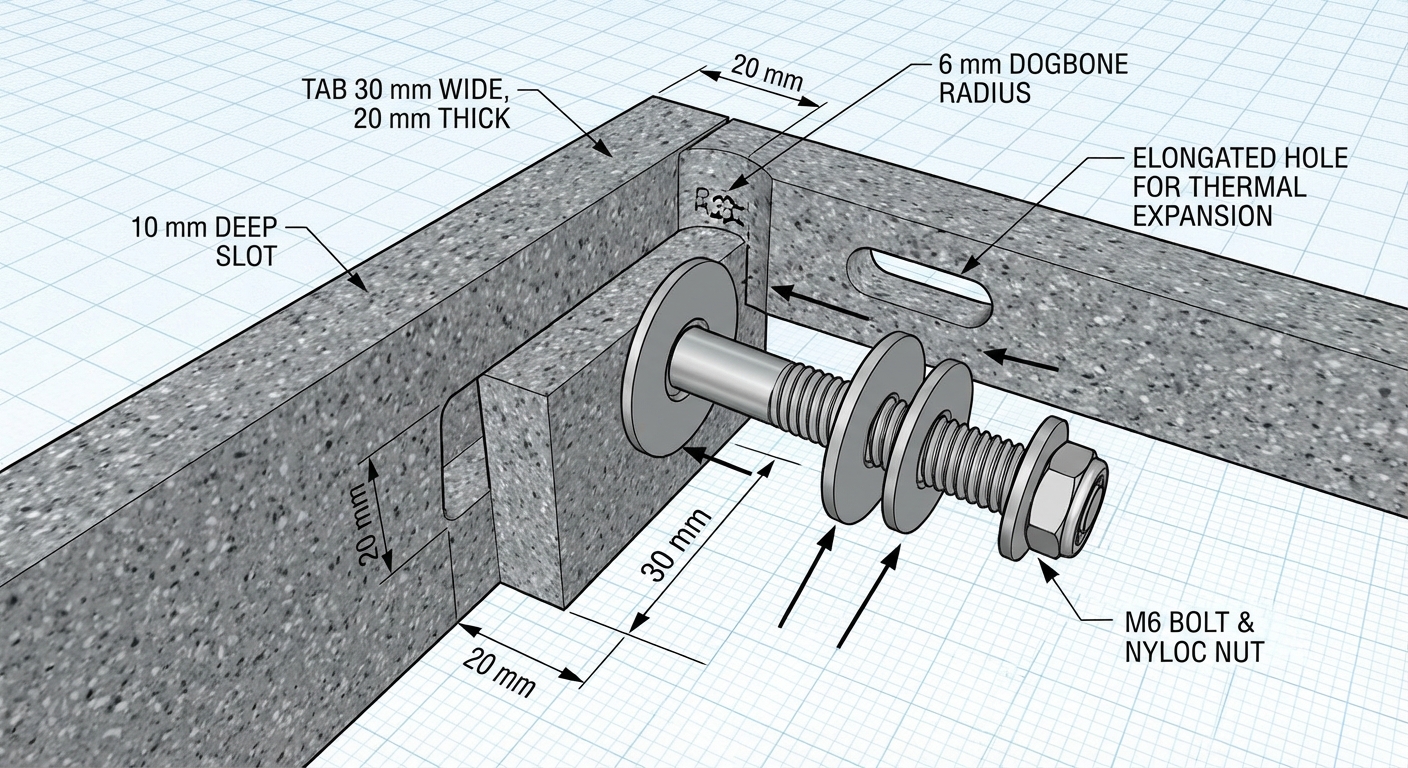

Reversible tab-and-slot with expansion slot and through-bolt fastening.

• Boxed edge shelf: 20 mm core with 40 mm tall edge strips bolted to front and back to form an L‑beam; simpler than full torsion box.

Drawer system (20/40/60 cm widths)

• Carcass: Same side walls; add front and rear rails.
• Runners:
  • Plastic L‑runner: 20 × 40 mm L‑profile cut from sheet and bolted to sides; apply UHMW tape on the horizontal surface.
  • Roller runner: Turn 20–25 mm OD nylon/HDPE rollers on the lathe; mount on M6 shoulder bolts into slotted holes for adjust.
  • Off‑the‑shelf slides: 45–55 mm full‑extension slides, M5/M6 bolts and washers.
• Clearance: Leave 1–1.5 mm per side (2–3 mm total) for plastic‑on‑plastic runners; 12–13 mm per side for many metal slides.
• Drawer box: 20 mm sides, 20 mm base; screw/bolt construction. Add a 20 mm front with pull. For heavy parts, use a 20 mm sub‑base and add a bolted angle stiffener under the drawer bottom.

Fastener patterns (examples)

• Tab‑and‑slot: 30 mm wide tabs, 10 mm deep; 6 mm corner dogbones. Through‑bolt each tab with M6 + large washers.
• Cleats: 20 × 40 mm strips bolted to sides (2 × M6 per 200 mm of span).
• Stiffener angles: drill 6.5 mm clearance holes at 100–150 mm spacing; bolt to shelf front/back.

Build steps: one 600‑mm module, shelves + two drawers

1. Cut panels

• 2 × sides 600 × 500 × 20 (uprights)
• 1 × top 640 × 500 × 20; 1 × bottom 640 × 500 × 20
• 2 × shelves 600 × 480 × 20 (trim depth to suit back rail)
• 1 × center divider 560 × 480 × 20 (optional, to split span)
• Rails/cleats from 120 mm offcuts

2. CNC machine features

• Side hole grids: 8 mm at 50 mm pitch, two rows per side (30 mm from edges)
• Bottom/top: end slots 10 × 20 mm for M6 bolts into sides
• Shelves: front/back 6.5 mm holes at 100–150 mm spacing for angles; optional dovetail tongues
• Drawers: drill runner holes per chosen hardware

3. Dry fit and drill

• Test fit tabs/slots; deburr and ease edges (2 mm chamfer or 2 mm radius)
• Drill through‑holes to final size on drill press; add slot elongation where needed

4. Assemble carcass (reversible)

• Bolt bottom and top between sides using M6 screws, penny washers, and nylocs. Use elongated holes on the panels that span the width.
• Add rear rail(s) from offcuts; bolt with slotted holes for expansion
• Level and square; measure diagonals

5. Fit shelves

• Option A: bolt angles to shelf front/back; drop shelf onto cleats or pins
• Option B: slide dovetail shelves into wall pockets
• Add center divider if using a 600 mm module under heavy load; bolt to shelf undersides via slotted brackets

6. Build drawers

• Box up drawer; ensure 2–3 mm total side clearance for plastic runners
• Install runners; test travel; add UHMW tape to bearing surfaces
• Add front and pull; ensure squareness

7. Stack/anchor

• Add bolt‑on stacking clips between modules (use 8 mm locator pins + M6 bolts)
• Anchor to wall/floor if storing very heavy parts

Machining tips for plastics

• Table saw: Use sharp, triple‑chip grind blade. Moderate feed to avoid melting; support work to prevent chatter.
• CNC router: Single‑flute O‑bit or 2‑flute upcut for HDPE/PP. Start 18–24k RPM, 3–6 m/min feed, 4–6 mm DOC; adjust to produce chips (not dust).
• Drill press: Use brad‑point or standard twist drills; step up bit sizes; back the hole to avoid blowout. Low–moderate speed.
• Edge finishing: Light flame pass or scrape with a deburring tool; avoid overheating.

Bill of materials (one 600‑mm module example)

• Plastic sheets: ~1 × 2000 × 1000 × 20 mm (carcass + 2 shelves + rails). Add another sheet or 10–15 mm stock for more drawers.
• Fasteners: ~60–80 × M6 × 20–35 mm machine screws; matching nylocs; 120+ large OD washers
• Stiffeners (optional): 2 × 640 mm long 30×30×3 mm aluminum angle; 1 × 600 mm long 40×20×2 mm tube (if no center divider)
• Low friction: 2 m UHMW tape, 20–25 mm turned rollers (optional)

Reconfiguration and reuse

• All joints are bolted; disassemble with Allen keys and spanners
• Universal hole grids let shelves/drawers move between modules
• Stiffeners and dividers are bolt‑on/removable
• Keep a bin of standard M6 hardware and spare cleats/runners from offcuts

Variants

• Deeper modules: change depth to 400 or 600 mm. For 600 mm depth, re‑optimize cut plan (2000 mm ÷ 600 mm = 3 panels with offcut).
• Mobile base: bolt panels to a dolly with locking casters; add corner gussets.
• Worktop: add a sacrificial 10 mm skin on top, bolted through slotted holes.

Notes on safety and durability

• Distribute heavy loads; heaviest items lowest.
• Use anti‑tip anchors for stacked modules.
• Re‑check bolt torque periodically (plastics can cold‑flow slightly under washers).

If you share a target load and a preferred cell mix (e.g., 2 × 600 + 3 × 400), I can provide an exact cut list and CNC‑ready hole maps for your sheets.
